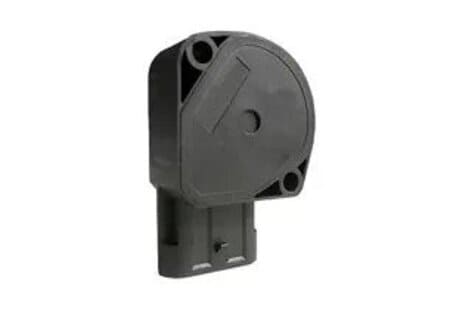

5124 Rotary Position Sensor

Dual Output and switching options(IVS) available

Features

Sensor: 5124 Contact Sensor
Travel: 48.5°,73.5°
Resistance: 5KΩ±20%, 2.74KΩ±20%, 2.5KΩ±20%, 3KΩ±20%
Working Voltage: 5V
Max Input: 16V
Max current: 10mA
Linearity: 2%
Protection: IP65
Life Cycle: 3,000,000
Operating Temp: -40°C to 125°C
Standards Met: AEB 15.59

For additional features, and product dimensional data, see technical guide.

Technical Drawing
