Rotary Position Sensors

The all-new integrated SAE J1939 CAN Bus throttle sensor is the smart choice for modern heavy-duty and off-highway equipment. By embedding a “smart” J1939 node directly into the pedal assembly, it delivers precise digital throttle control while reducing wiring complexity, eliminating analog signal drift, and improving system diagnostics.

Available across our industrial throttle portfolio (10451, 10458, 10459, 10438, 10463, 10628, 10622 and 10626), this plug-and-play solution helps OEMs future-proof machine platforms for Tier 4/Stage V, hybrid, and electric vehicles. With a compact 4-wire interface and rugged non-contact Hall-effect sensing, the J1939 throttle sensor is ideal for construction, agriculture, material handling, and specialty vehicles that demand reliable, noise-immune control.

Features:

• SAE J1939 compliant with 250k or 500k baud rate options
• Broadcasts PGN 61443 (EEC2) for Accelerator Pedal Position and related parameters
• Dual CAN outputs for redundant networks and enhanced safety
• Standardized 0–100% pedal position output for plug-and-play ECU integration
• Non-contact Hall-effect sensing element, fully sealed for durability
• 4-wire interface: Power, Ground, CAN-H, CAN-L
• Designed for both 12V and 24V electrical systems
• High immunity to EMI/RFI – ideal for hybrid and electric industrial vehicles

Features

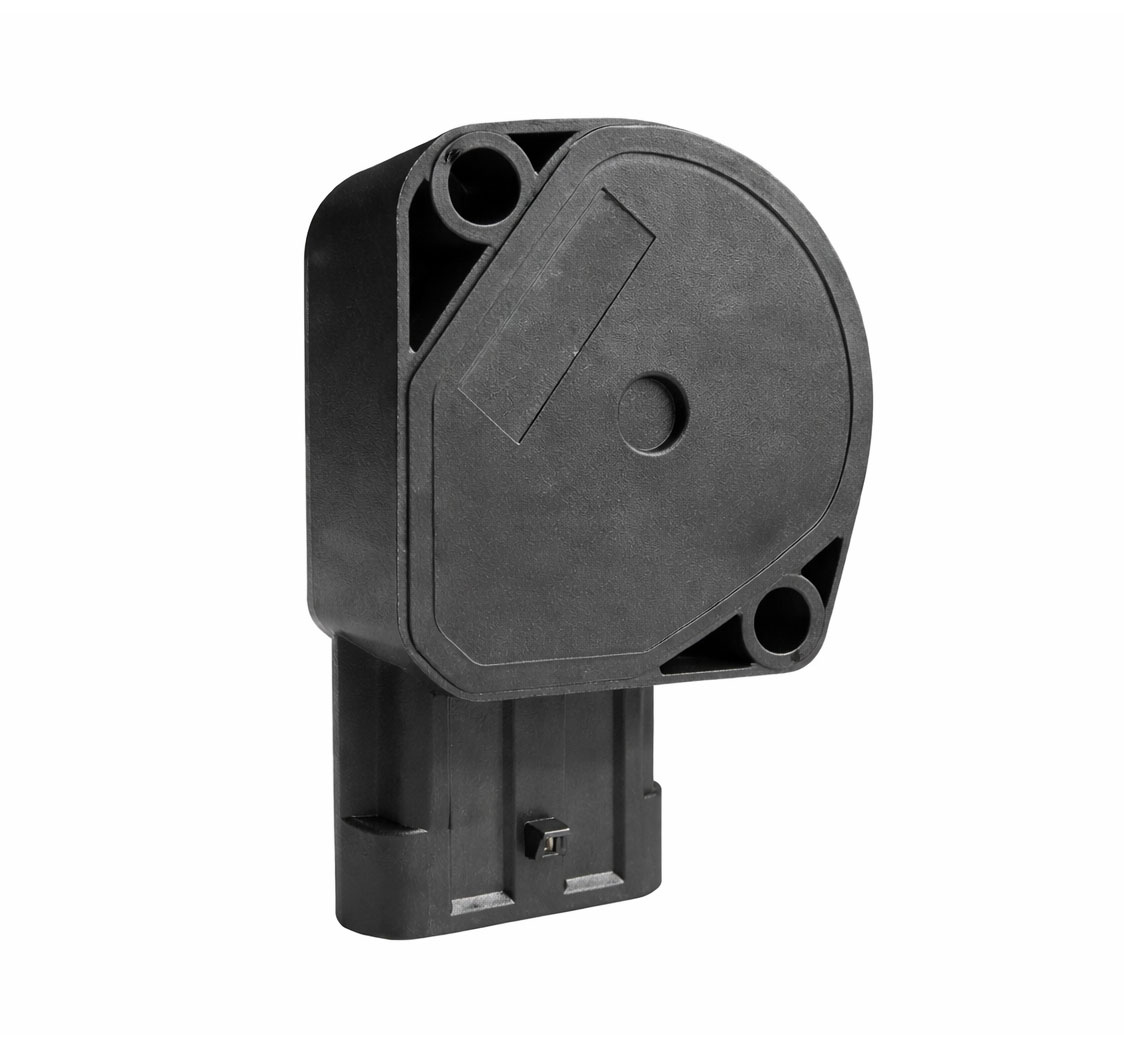

• Sensor: 5124 Contact Sensor
• Travel: 48.5°, 73.5°
• Resistance: 5KΩ ±20%, 2.74KΩ ±20%, 2.5KΩ ±20%, 3KΩ ±20%
• Working Voltage: 5V
• Max Input: 16V
• Max Current: 10mA
• Linearity: 2%
• Protection: IP65
• Life Cycle: 3,000,000
• Operating Temp: -40°C to 125°C
• Standards Met: AEB 15.59

For additional features and product dimensional data, see technical guide.

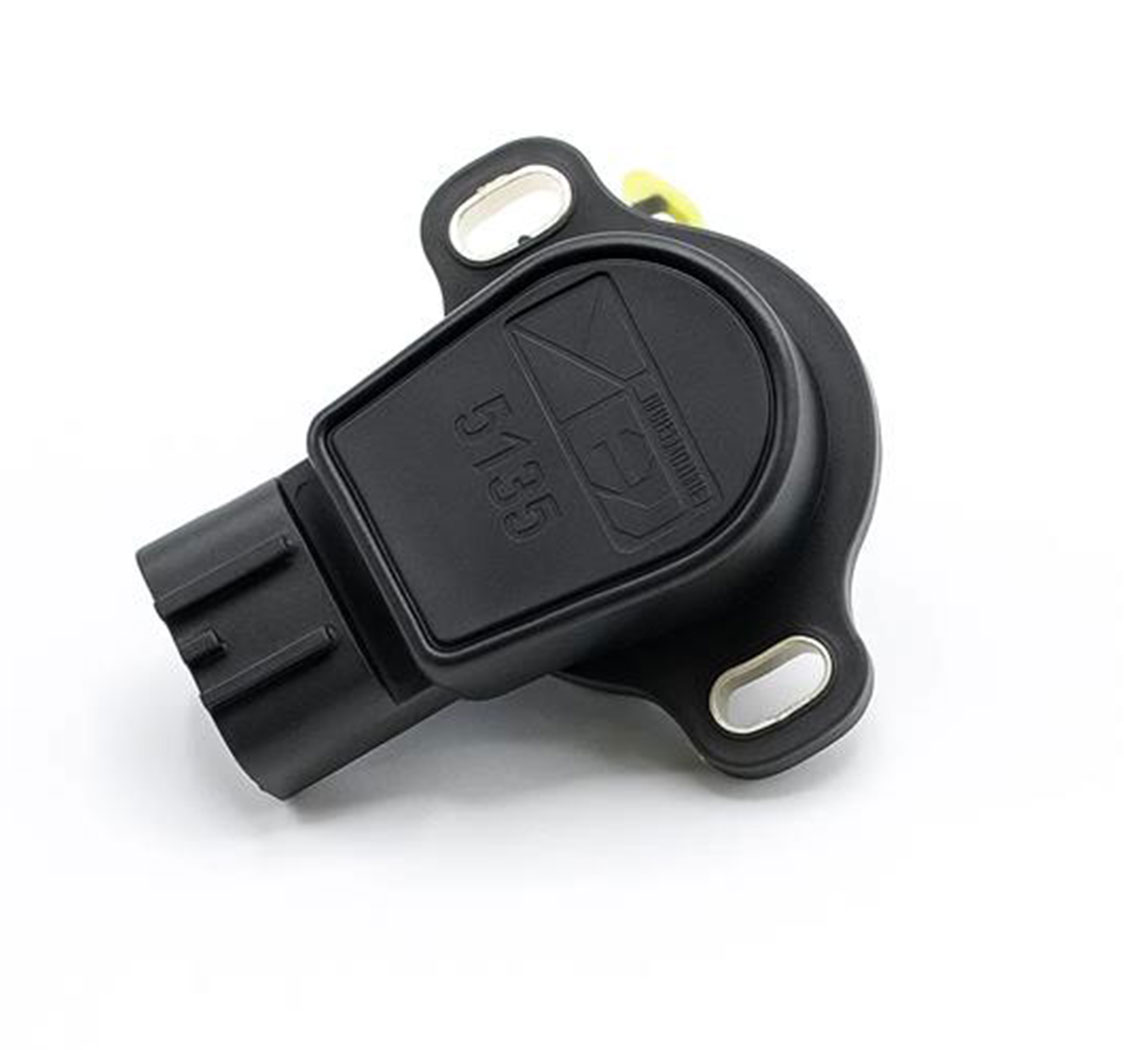

Designed specifically for the forklift industry and a widely used resistive element sensor replacement for the 3B, 3F and 3P series sensor.

Features

• Travel: 120°
• Sensor Type: Resistive: 3.75KΩ±20%, 7.5KΩ±20%
• Working Voltage: 5V
• Max Input: 18V
• Max current: 10mA
• Protection: IP66
• Life Cycle: >3,000,000
• Operating Temp: -40°C to 85°C
• Output: Output 1= 0.768V to 4.554V, Output 2 = 1/2 Output 1
• Other Notes: Replacement for 3B, 3F, 18919 AM810

For additional features, and product dimensional data, see technical guide.
