10468

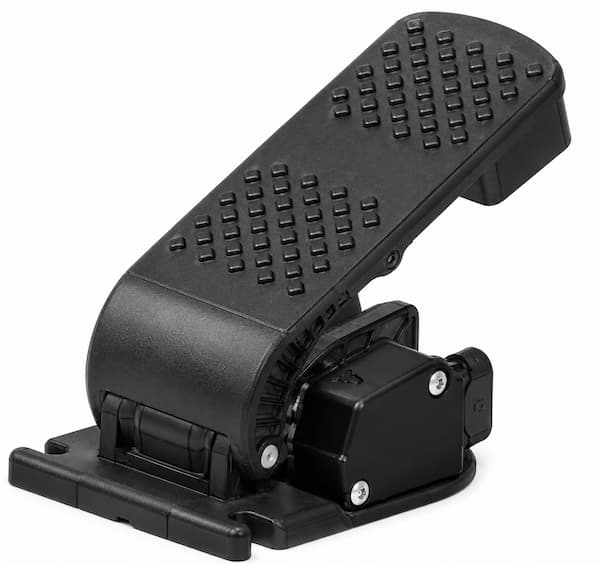

Our Sure Grip Controls 10468 Electronic Throttle is a precision Hall-effect sensor device delivering dependable, non-contact performance with a compact 9° travel range and 25° resting angle.

Designed for versatility, it offers dual and single analog outputs alongside PWM, supporting both standard 5V and optional 9–36V operating voltage. With dual-channel output at 18mA per channel, robust IP66 and IP67 protection, and full compliance with FMVSS124 and Cummins AEB 15.67 standards, the 10468 ensures reliable precision control across automotive, industrial, and demanding field environments.
‍

Resting Angle: 25°

Travel: 9°

Sensor Type: Hall

Working Voltage: 5V, optional 9-36V

Linearity: 2%

Current: 18mA per Channel

Output Type: Dual analog, Single analog, PWM

Protection: IP66, IP67

Life Cycle: 1,000,000

Operating Temp: -40°c to 85°C

Standards Met: FMVSS124, Cummins AEB 15.67

‍
