Why Driver Boards Are Essential for Modern Mobile Equipment Control Systems

Mobile equipment manufacturers face an ongoing challenge: how to deliver precise hydraulic control while managing increasingly complex operational requirements. Traditional relay-based control systems served their purpose for decades, but they come with significant limitations like bulky installations, multiple failure points, difficult troubleshooting, and limited flexibility for customization.

Driver boards represent a fundamental shift in how mobile equipment control systems are designed and implemented. These compact electronic solutions consolidate the functions of multiple relays, timers, and logic circuits into single, programmable units that deliver superior performance and reliability.

From Relays to Driver Boards

Each relay in a relay-based control system represents a potential failure point, and troubleshooting complex relay logic can consume hours of technician time. When modifications are needed, the entire system may require rewiring.

Driver boards eliminate these complications. By integrating control logic into solid-state electronics with factory programming, manufacturers gain several immediate advantages:

Simplified Installation: A single driver board replaces multiple relays and timers, reducing wiring complexity and installation time. Fewer connections mean fewer opportunities for wiring errors or connection failures.

Enhanced Reliability: Solid-state outputs withstand the vibration, temperature extremes, and electrical transients common in mobile equipment environments. Built-in protection features guard against over-current, over-temperature, and switching transients that would damage traditional relay systems.

Customizable Logic: Factory programming allows manufacturers to implement complex control sequences that would require dozens of relays and timers. Changes to control logic can be made through reprogramming rather than physical rewiring.

Reduced Footprint: Compact driver boards fit in tight spaces where relay panels would never work, supporting modern equipment designs with limited available space for control components.

Modern driver boards offer capabilities that extend far beyond simple relay replacement. Bailey's driver board portfolio demonstrates the range of functions these solutions provide:

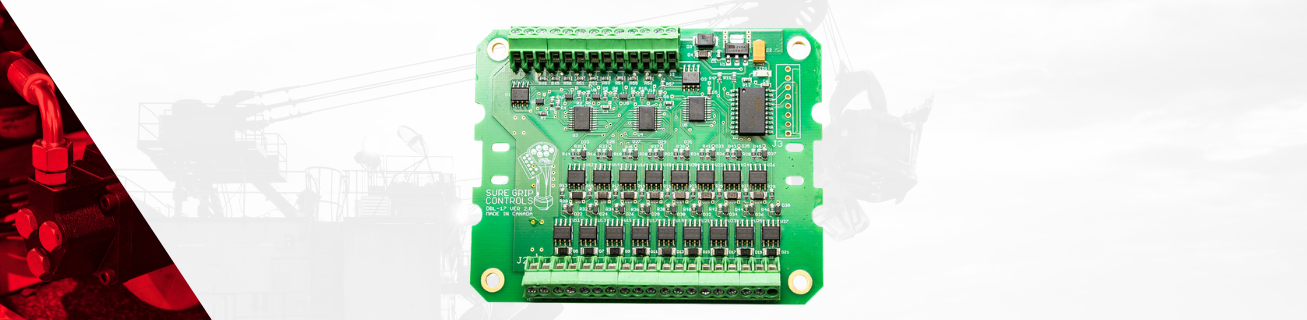

The DBL-17 Logic Driver Board handles complex control requirements by reading up to 10 inputs and controlling up to 17 high-current outputs. This capability allows a single control handle to manage multiple hydraulic functions through programmable logic sequences. The board's solid-state outputs can be paralleled for higher current requirements, and comprehensive protection features ensure reliable operation in demanding applications.

Danfoss Adapter Driver Boards specialize in proportional control, enabling direct connection between joystick controls and industry-standard proportional valves. These boards provide the signal conditioning and amplification needed for precise valve control, with features like 300ms ramp rates that ensure smooth, controlled movements. The availability of Caterpillar ECM compatible versions demonstrates how driver boards can integrate with existing equipment architectures.

The Single Axis Driver Board (SDB-P1) focuses on proportional solenoid control, supporting applications where precise positioning or speed control is required. With adjustable PWM outputs up to 2.5A and dual 7-segment displays for field calibration, this board provides the flexibility technicians need for optimal system tuning.

Protection Features

Mobile equipment operates in harsh environments where electrical disturbances are common. Driver boards incorporate protection features that would be impractical to implement with relay-based systems:

• Over-Current Protection: Automatic current limiting prevents damage from short circuits or overloaded outputs, eliminating the need for external fuses on each circuit.

• Thermal Management: Built-in temperature monitoring shuts down outputs before heat damage occurs, then automatically resets when temperatures return to safe levels.

• Transient Protection: Solid-state designs withstand voltage spikes from inductive loads, eliminating the arcing and contact wear that degrades relay performance over time.

• Reverse Polarity Protection: Prevents damage from incorrect power connections during installation or maintenance, a common issue in field service situations.

• Fault Detection: Status indicators and diagnostic features help technicians quickly identify and resolve issues, reducing downtime and service costs.

Factory Configuration for Your Specifications

One of driver boards' most significant advantages is factory programming that matches your exact requirements. Rather than selecting from limited off-the-shelf options, manufacturers work with engineering teams to define:

• Input signal types and voltage ranges

• Output current requirements and PWM frequencies

• Control logic sequences and timing parameters

• Fault response behaviors

• Enable/disable functions and interlocks

This customization ensures the driver board integrates seamlessly with your equipment design without requiring external components or workarounds. Changes to control logic can be implemented through programming updates rather than hardware modifications.

Integration with Proportional Control Systems

Proportional hydraulic control has become standard in modern mobile equipment, offering the precise positioning and speed control operators demand. Driver boards designed for proportional applications provide critical functions:

• Signal Conditioning: Converting joystick outputs to the voltage ranges proportional valves require, with precise calibration to ensure consistent performance across equipment units.

• Ramp Control: Managing acceleration and deceleration rates to prevent jerky movements and improve operator comfort while protecting hydraulic components from shock loads.

• Valve Enable Control: High-current outputs for valve energization, coordinated with proportional signals to ensure proper valve operation.

• Fault Management: Monitoring for open circuits, short circuits, or out-of-range signals that indicate system problems requiring attention.

Real-World Application Considerations

Successful driver board implementation requires attention to several practical factors:

Supply Voltage Range: Mobile equipment may operate on 12V or 24V electrical systems, and voltage can vary significantly during starting and charging. Driver boards with wide supply voltage ranges (+6V to +30V) handle these variations without external regulation.

Environmental Sealing: While driver boards themselves are typically housed in protective enclosures, connector selection and sealing methods must prevent moisture and contamination ingress in harsh operating environments.

EMI Considerations: Mobile equipment often includes radio communications, GPS, and other electronic systems sensitive to electromagnetic interference. Proper driver board grounding and shielding prevents interference issues.

Heat Dissipation: High-current outputs generate heat that must be managed through proper mounting and ventilation. Understanding thermal requirements during installation prevents performance degradation.

Field Serviceability: While driver boards reduce overall system complexity, providing clear documentation and diagnostic procedures helps service technicians maintain equipment efficiently.

Beyond technical advantages, driver boards deliver measurable business benefits:

• Reduced Assembly Time: Simplified wiring and fewer components accelerate production line throughput, reducing labor costs per unit.

• Lower Warranty Costs: Enhanced reliability and protection features reduce field failures and warranty claims.

• Improved Product Quality: Consistent factory programming eliminates variability between units and reduces quality issues from wiring errors.

• Easier Updates: Design improvements can be implemented through programming changes rather than hardware modifications, supporting continuous improvement initiatives.

• Enhanced Customer Satisfaction: More reliable control systems reduce customer downtime and maintenance costs, strengthening your reputation and customer relationships.

Selecting the Right Driver Board

Choosing appropriate driver boards for your equipment requires careful evaluation of:

• Number and type of inputs needed

• Output current and voltage requirements

• Control logic complexity

• Environmental conditions

• Integration with existing electrical architecture

• Future expandability needs

Working with experienced suppliers, like Bailey, who offer engineering support ensures proper selection and successful implementation. Technical documentation, including detailed specifications and wiring diagrams, supports both production and field service requirements.

Manufacturers who integrate driver boards into their designs gain competitive advantages through reduced production costs and enhanced equipment capabilities. The technology has matured to the point where driver boards should be the default choice for new equipment designs and a priority upgrade for existing product lines experiencing reliability issues with relay-based systems.

Bailey's specialized driver boards are designed specifically for mobile equipment applications, with factory configuration services and technical support that ensure successful integration. Our engineering team works with manufacturers to define optimal solutions for their specific requirements, backed by rapid delivery from our distribution network.

Look through our technical documentation here.
