Hydraulic Filter Replacement Guide

Hydraulic filters are the primary defense against contamination, ensuring your system operates with precision, power, and longevity.

Understanding how to properly maintain and replace these filters is critical. Neglecting them can lead to decreased efficiency, accelerated wear on expensive components, and even catastrophic system failure. This guide offers a clear, step-by-step approach to hydraulic filter replacement, explaining the "what," "why," and "how" of this essential maintenance task. By the end, you'll have the knowledge needed to protect your investment and keep your equipment running at peak performance.

The Role of Hydraulic Filters

At its core, a hydraulic system relies on clean fluid to transfer power. However, this fluid can become contaminated with particles from internal wear (like metal shavings) or external sources (like dust and dirt). If left unchecked, these contaminants act like sandpaper, grinding away at the sensitive internal components of pumps, valves, and cylinders. This leads to reduced efficiency, as contaminated fluid loses its protective properties and requires more pressure to do the same amount of work.

Hydraulic filters are engineered to capture these harmful particles, keeping the fluid clean and the system healthy.

Types of Hydraulic Filters

Hydraulic systems use several types of filters, each strategically placed to protect different parts of the circuit. While they all serve the same purpose of removing contaminants, their specific location and design are tailored to the pressures and flow conditions of that area.

- Suction Filters

Located between the fluid reservoir and the pump, suction filters (or strainers) provide the first line of defense. Their main job is to prevent large particles from entering the pump, which is often the most expensive and sensitive component in the system. They are typically low-pressure filters made of wire mesh.

- Pressure Filters

Installed downstream from the pump, pressure filters protect critical components like control valves and actuators from contaminants generated by the pump or that may have bypassed the suction filter. These are high-pressure filters designed to withstand the full operating pressure of the system, which can range from 1,885 to over 6,500 psi.

- Return Filters

Positioned in the return line, these filters clean the hydraulic fluid as it flows back into the reservoir. The return filter is often considered the most important filter in the entire system. It captures any debris generated during equipment operation, such as wear particles from cylinders and motors, before it can be recirculated. By cleaning the fluid just before it enters the tank, it ensures the entire reservoir remains as clean as possible.

- In-Tank and Breather Filters

In-tank filters are a space-saving design where the filter element is submerged inside the hydraulic reservoir, often serving the return line. Breather filters are located on the reservoir's vent, preventing airborne contaminants like dust and moisture from being drawn into the system as the fluid level changes.

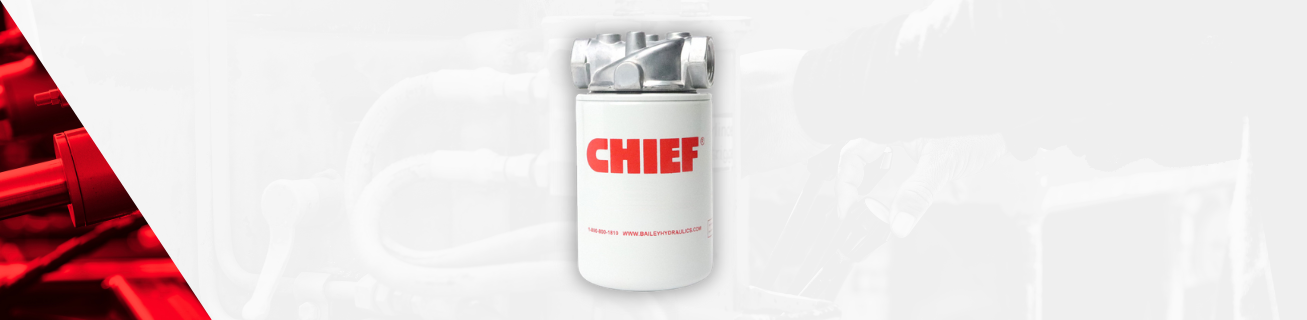

How to Replace a Spin-On Hydraulic Filter

Spin-on filters are one of the most common designs and are relatively straightforward to replace. Following a careful process is key to avoiding fluid loss and ensuring a proper seal.

Here is a step-by-step guide:

1. Prepare Your Workspace
Before you begin, ensure the machine is parked on a level surface and the hydraulic system is turned off and depressurized. Place a suitably sized oil pan directly beneath the hydraulic filter to catch any fluid that will leak during removal.

2. Remove the Old Filter
Using a filter wrench, turn the existing filter counter-clockwise until it loosens. Once it's loose, you can typically finish unscrewing it by hand. Remove it slowly and carefully, keeping it upright to minimize spillage as you lower it into the oil pan.

3. Clean the Filter Head
With the old filter removed, use a clean, lint-free cloth to wipe down the filter head (the surface where the filter seals against the housing). Remove any old hydraulic fluid, dirt, or remnants of the old gasket. A clean surface is essential for a leak-free seal.

4. Prepare the New Gasket
Your new filter will come with a new gasket or O-ring. Before installation, lightly lubricate this new seal by applying a thin film of clean hydraulic fluid to its surface. This helps ensure it seats correctly and creates a tight seal without pinching or tearing.

5. Install the New Filter
Carefully screw the new filter onto the filter head by hand, turning it clockwise. Hand-tighten it until the gasket makes firm contact with the filter head. Then, using the filter wrench, tighten it an additional one-half to three-quarters of a turn, or as specified by the manufacturer. Be careful not to overtighten, as this can damage the filter or its seal.

After installation, run the machine and check for any leaks around the new filter.

Over time, filters become clogged with contaminants. A clogged filter can restrict fluid flow, forcing the system to work harder and generate excess heat.

Most pressure and return filters are equipped with a bypass valve as a failsafe. If the filter becomes too clogged, this valve opens to allow fluid to flow around the filter element, preventing the system from being starved of oil. However, when the bypass is open, contaminated, unfiltered fluid circulates through the system, accelerating wear and defeating the purpose of the filter.

Best Practices for Filter Maintenance

• Follow Manufacturer Recommendations: Your equipment manual is the best source for recommended replacement intervals. A general guideline is to change filters every time you change the hydraulic fluid, typically every 1,000 to 2,000 operating hours.

• Consider Operating Conditions: If your machinery operates in dusty or dirty environments, you will need to replace filters more frequently.

• Conduct Regular Inspections: Visually inspect your filters for signs of damage or deformities. Also, monitor filter pressure gauges if your system has them. A steady increase in pressure indicates the filter is becoming clogged.

• Use the Right Filter: Always replace filters with new ones that meet the manufacturer's specifications for pressure and efficiency ratings. Choosing a cheaper, lower-quality filter can compromise protection.

• Store Spares Properly: Keep spare filters in a clean, dry place to prevent them from becoming contaminated before you even install them.

Maintaining a hydraulic system is about more than just following steps; it’s about understanding the principles of fluid power and having a partner you can trust. A well-maintained system is a direct reflection of the quality of its components and the expertise behind its care.
