How to Replace a Damaged Hydraulic Pump

When a pump begins to fail, performance issues can quickly spread throughout your equipment, including overheating, slow operation, loss of pressure, unusual noise, or complete system shutdown.

Replacing a damaged hydraulic pump requires careful inspection, system cleaning, proper installation, and post-installation testing to prevent repeat failures and unnecessary downtime.

This guide will walk you through the essential steps for replacing a hydraulic pump safely and correctly.

Signs Your Hydraulic Pump Needs Replacement

Before replacing a pump, it’s important to confirm the pump is actually the source of the issue. Common symptoms of pump failure include:

• Excessive noise or whining

• Slow or erratic actuator movement

• Reduced hydraulic pressure

• Fluid overheating

• Visible leaks around the pump housing

• Metal contamination in hydraulic fluid

• Cavitation or vibration

• Loss of efficiency under load

In many cases, contamination, overheating, or improper fluid levels can actually contribute to pump failure. Identifying the root cause before installing a new pump helps prevent repeated damage.

Step 1: Lock Out and Prepare the Equipment

Safety should always come first.

Before beginning any hydraulic pump replacement:

1. Shut down the machine completely

2. Relieve hydraulic system pressure

3. Disconnect power sources

4. Follow all lockout/tagout procedures

5. Allow components and fluid to cool

Hydraulic systems can retain pressure even after shutdown, so never loosen fittings until pressure has been fully relieved.

Step 2: Inspect the Existing System

A failed pump is often the result of another issue within the hydraulic system. Before removing the old pump, inspect:

• Hydraulic fluid condition

• Reservoir cleanliness

• Suction lines and fittings

• Filters and strainers

• Relief valve settings

• Couplings and shafts

• Hose condition

Contaminated fluid is one of the leading causes of hydraulic pump damage. Dirt, metal particles, moisture, and degraded oil can quickly destroy a replacement pump if the system is not cleaned thoroughly.

Step 3: Remove the Damaged Pump

Once the system has been inspected:

1. Drain hydraulic fluid if necessary

2. Label and disconnect hydraulic lines

3. Remove mounting hardware

4. Disconnect the drive coupling or PTO

5. Carefully remove the damaged pump

During removal, inspect the old pump for signs of:

• Scoring

• Excessive wear

• Burnt fluid residue

• Shaft damage

• Seal failure

These clues can help identify what caused the failure.

Step 4: Clean the Entire Hydraulic System

This step is critical.

Installing a new hydraulic pump into a contaminated system can lead to immediate damage and shortened pump life. Best practices include:

• Flushing hydraulic lines

• Cleaning the reservoir

• Replacing filters

• Inspecting suction strainers

• Removing debris from hoses and fittings

We strongly recommend fully cleaning the system before installing a replacement pump.

Step 5: Verify Replacement Pump Specifications

Not all hydraulic pumps are interchangeable.

Before installation, confirm the replacement pump matches the original system requirements, including:

• Flow rate (GPM)

• Pressure rating

• Rotation direction

• Mounting style

• Shaft configuration

• Port sizes

• Displacement

Using an incorrectly sized pump can create performance issues, excessive heat, or even premature failure.

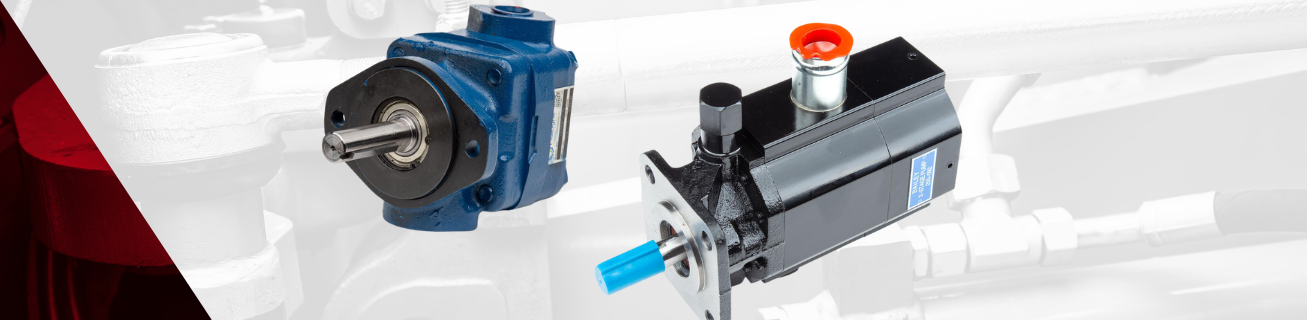

At Bailey International, we offer a wide range of hydraulic pump solutions, including gear pumps, piston pumps, vane pumps, hand pumps, and two-stage pumps designed for mobile hydraulic applications.

Step 6: Install the New Hydraulic Pump

When installing the replacement pump:

1. Pre-fill the pump with clean hydraulic fluid if recommended

2. Align shafts and couplings properly

3. Secure mounting hardware evenly

4. Reconnect hydraulic lines carefully

5. Ensure all fittings are properly tightened

Improper alignment can place excess stress on bearings and seals, reducing pump life.

It’s also important to ensure the pump has an unobstructed oil supply during startup to prevent dry running or cavitation.

Step 7: Refill the System with Clean Hydraulic Fluid

Always use clean hydraulic oil with the correct viscosity recommended for the application.

After refilling:

• Bleed air from the system

• Check fluid levels

• Inspect for leaks

• Replace filters if needed

Air trapped in hydraulic systems can cause erratic performance and cavitation.

Step 8: Start Up and Test the System

Initial startup should be performed gradually.

Recommended startup procedure:

• Run the system at low RPM first

• Monitor pressure gauges

• Watch for leaks or unusual noises

• Cycle cylinders and motors slowly

• Recheck fluid levels

Pressure settings should always remain within the limits of the lowest-rated component in the hydraulic system.

Common Mistakes to Avoid

When replacing a hydraulic pump, avoid these common errors:

• Reusing contaminated hydraulic fluid

• Failing to replace filters

• Installing the wrong pump size

• Ignoring suction line restrictions

• Running the pump dry at startup

• Overlooking relief valve settings

• Skipping system flushing

Many repeat pump failures are caused by unresolved system contamination or installation issues.

Preventing Future Hydraulic Pump Failures

Preventive maintenance plays a major role in extending hydraulic pump life. Key maintenance practices include:

• Monitoring fluid cleanliness

• Replacing filters regularly

• Checking fluid levels

• Inspecting hoses and fittings

• Monitoring operating temperatures

• Addressing leaks immediately

Routine inspections help identify issues before they become costly failures.

Replacing a damaged hydraulic pump is really an opportunity to improve the reliability, efficiency, and longevity of your entire hydraulic system. By identifying the root cause of failure, thoroughly cleaning the system, and installing the correct replacement pump, operators can reduce downtime and avoid repeat failures.
