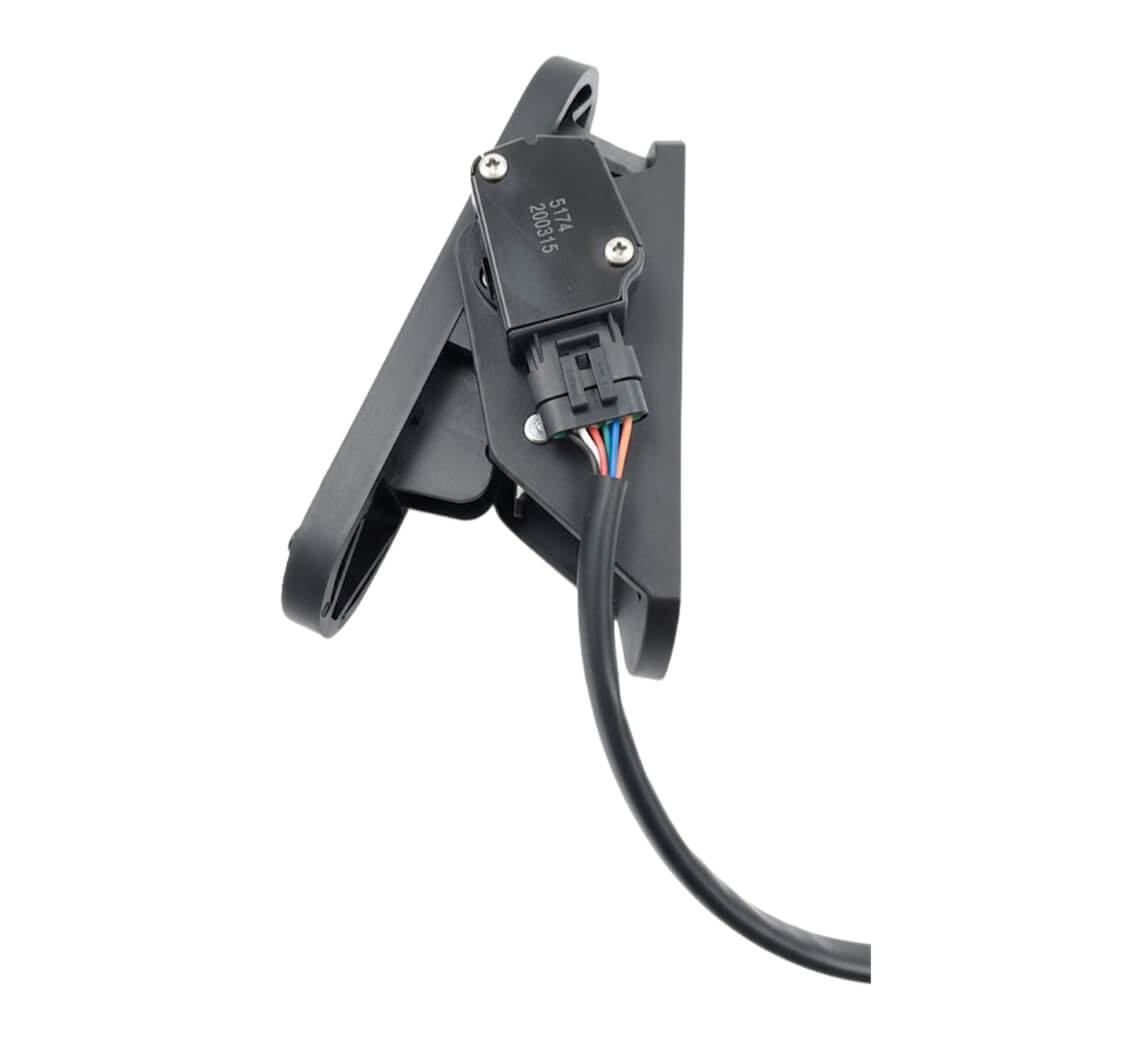

5174 - Rotary Position Sensor

The all-new integrated SAE J1939 CAN Bus throttle sensor is the smart choice for modern heavy-duty and off-highway equipment. By embedding a “smart” J1939 node directly into the pedal assembly, it delivers precise digital throttle control while reducing wiring complexity, eliminating analog signal drift, and improving system diagnostics.

Available across our industrial throttle portfolio (10451, 10458, 10459, 10438, 10463, 10628, 10622 and 10626), this plug-and-play solution helps OEMs future-proof machine platforms for Tier 4/Stage V, hybrid, and electric vehicles. With a compact 4-wire interface and rugged non-contact Hall-effect sensing, the J1939 throttle sensor is ideal for construction, agriculture, material handling, and specialty vehicles that demand reliable, noise-immune control.

Features:

• SAE J1939 compliant with 250k or 500k baud rate options
• Broadcasts PGN 61443 (EEC2) for Accelerator Pedal Position and related parameters
• Dual CAN outputs for redundant networks and enhanced safety
• Standardized 0–100% pedal position output for plug-and-play ECU integration
• Non-contact Hall-effect sensing element, fully sealed for durability
• 4-wire interface: Power, Ground, CAN-H, CAN-L
• Designed for both 12V and 24V electrical systems
• High immunity to EMI/RFI – ideal for hybrid and electric industrial vehicles
